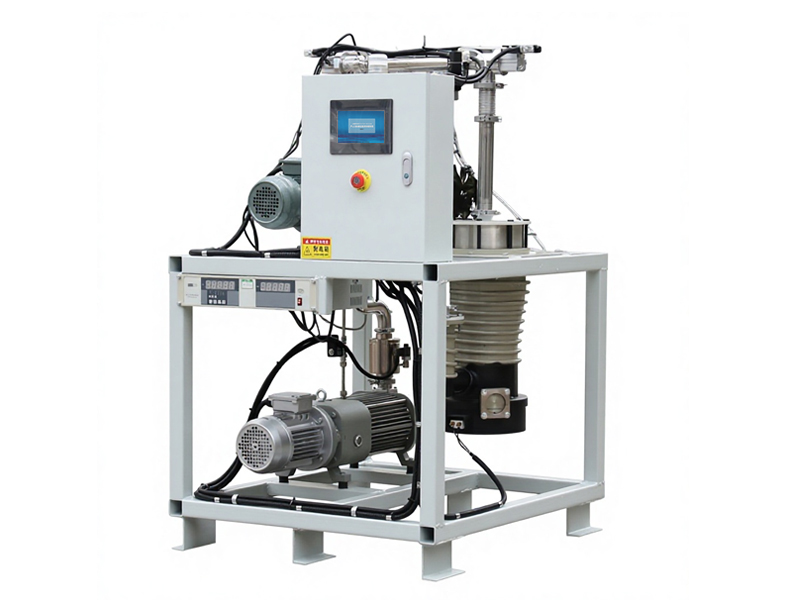

Custom Diffusion Vacuum Systems
Custom‑Built | Stable & Efficient | Intelligent Control
Pumping Speed
Custom
Ultimate Pressure
Custom
Motor Power
Custom
Total Weight
Custom
PJZ-TK Series Recommended Configurations
| Model | Main Pump | Backing Pump | Matching chamber（L） | Pumping Speed（L/s） | Ultimate Pressure（Pa） | Total Power（kW） |
|---|---|---|---|---|---|---|
| PJZ-KT150-300A | TK-150 | ZJP-70 + 2XZ-8B | 300 | 1000 | ≤5×10-5 | 3.6 |
| PJZ-KT300-800A | TK-300 | ZJP-300 + 2XZ-25B | 800 | 4000 | ≤5×10-5 | 9.1 |
| PJZ-KT200-500A | KT-200 | ZJP-150 + 2XZ-15B | 500 | 2000 | ≤5×10-5 | 5.5 |
| PJZ-KT400-1000A | KT-400 | ZJP-1200 + 2XZ-25B | 1000 | 7000 | ≤5×10-5 | 18.8 |
Remarks:
- Above parameters are recommended configurations.
- Actual configuration may vary per customer requirements (e.g., special materials, controls, accessories).
- All vacuum systems are strictly tested before delivery.
- Recommended vacuum pump: Puyan Air-cooled screw vacuum pump PVG series，Puyan Dual stage vacuum pumps 2xz Series，Other brands available on request.
