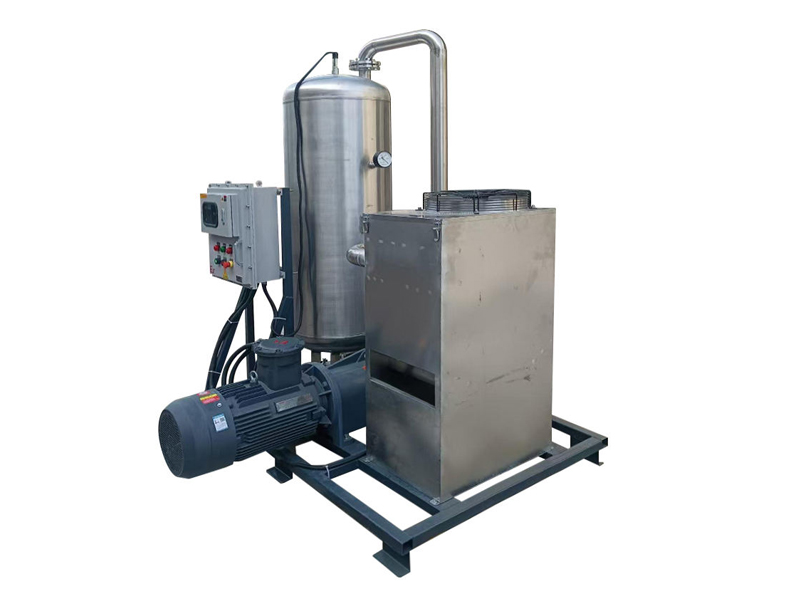

Name: Puyan Custom Liquid Ring Vacuum Systems
Brand: PUYAN
SKU: Liquid Ring Vacuum Systems

PUYAN

Custom Liquid Ring Vacuum Systems

Custom‑Built | Stable & Efficient | Intelligent Control

Pumping Speed

Custom

Ultimate Pressure

Custom

Motor Power

Custom

Total Weight

Custom

Model	Main Pump	Pumping Speed（m³/h）	Ultimate Pressure（kPa）	Total Power（kW）	Matching chamber（L）	Water Consumption (L/min)	Matching Chamber（L）
YJZ-2BV2060	2BV2060	27	-97	0.81	60	1-3	60
YJZ-2BV2061	2BV2061	52	-97	1.45	100	2-4	60
YJZ-2BV2070	2BV2070	80	-97	2.35	100	3-5	80
YJZ-2BV2071	2BV2071	110	-97	3.85	100	5-8	80
YJZ-2BV5110	2BV5110	165	-97	4.0	300	6-10	100
YJZ-2BV5111	2BV5111	230	-97	5.5	300	6-10	100
YJZ-2BV5121	2BV5121	280	-97	7.5	500	10-12	150
YJZ-2BV5131	2BV5131	400	-97	11.0	500	15-20	150
YJZ-2BV5161	2BV5161	500	-97	15.0	800	20-25	200
YJZ-2BV6110	2BV6110	165	-97	4.0	300	6-10	100
YJZ-2BV6111	2BV6111	230	-97	5.5	300	6-10	100

Above parameters are recommended configurations.
Actual configuration may vary per customer requirements (e.g., special materials, controls, accessories).
All vacuum systems are strictly tested before delivery.

Puyan Custom Liquid Ring Vacuum Systems
